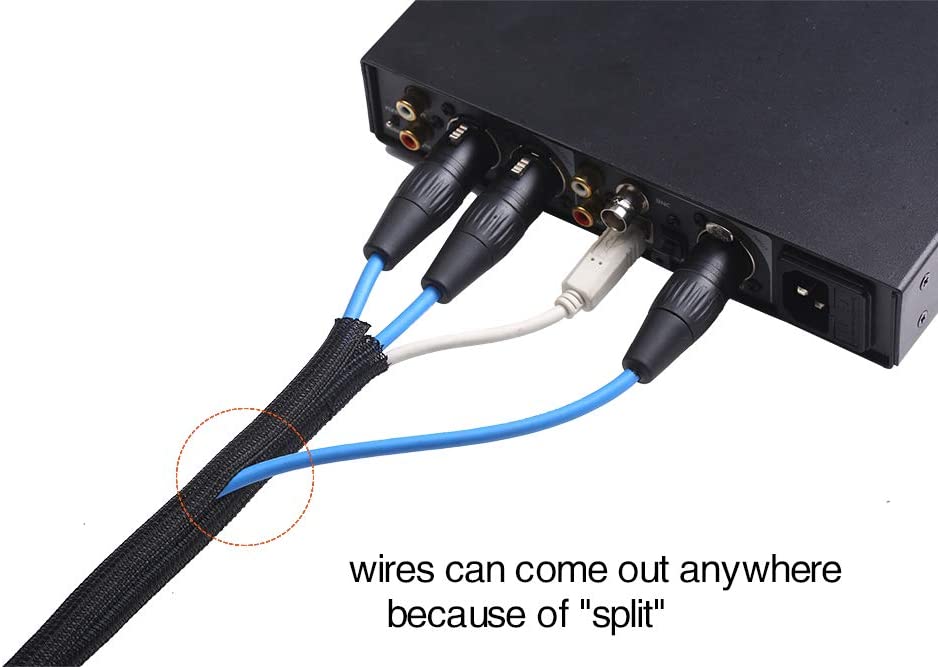

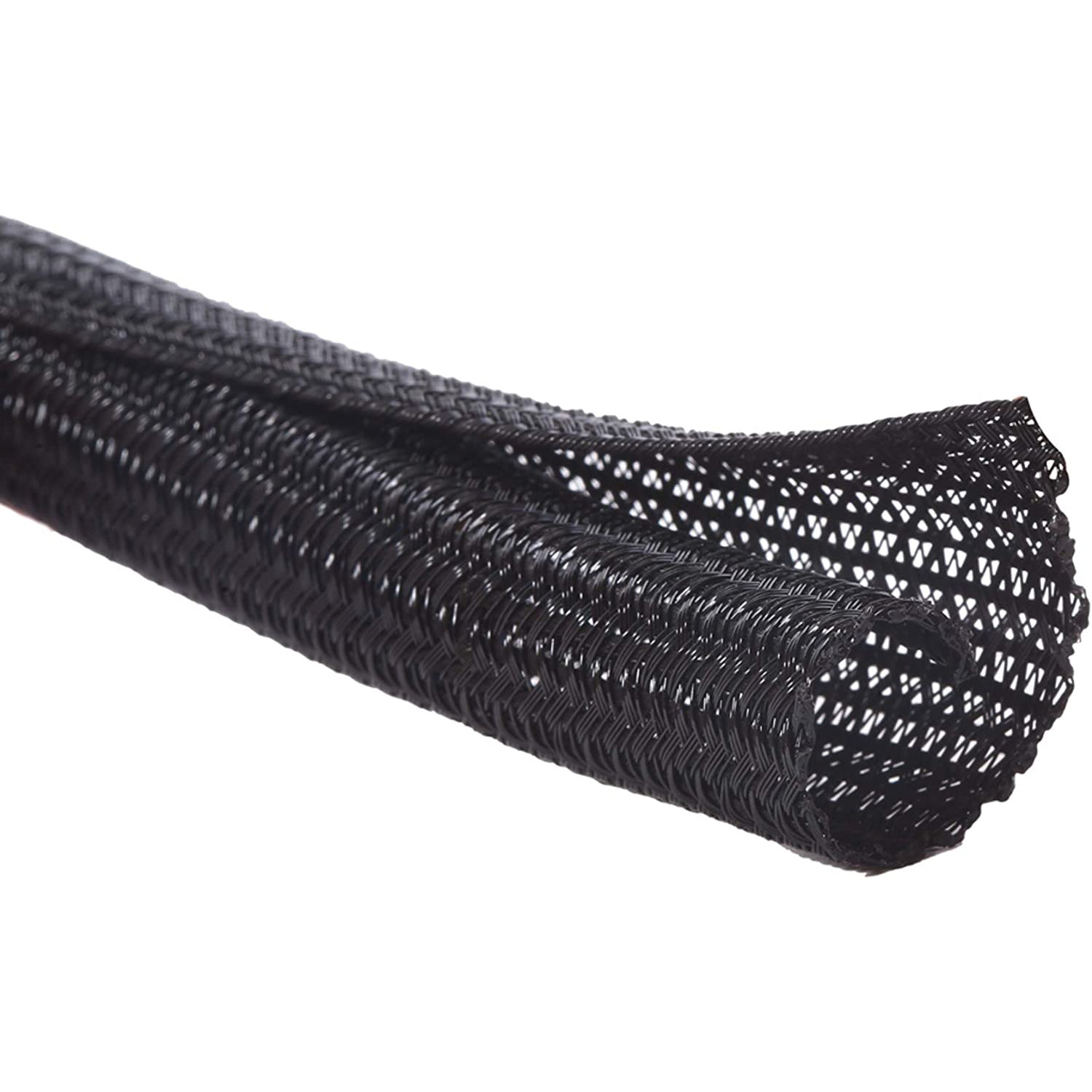

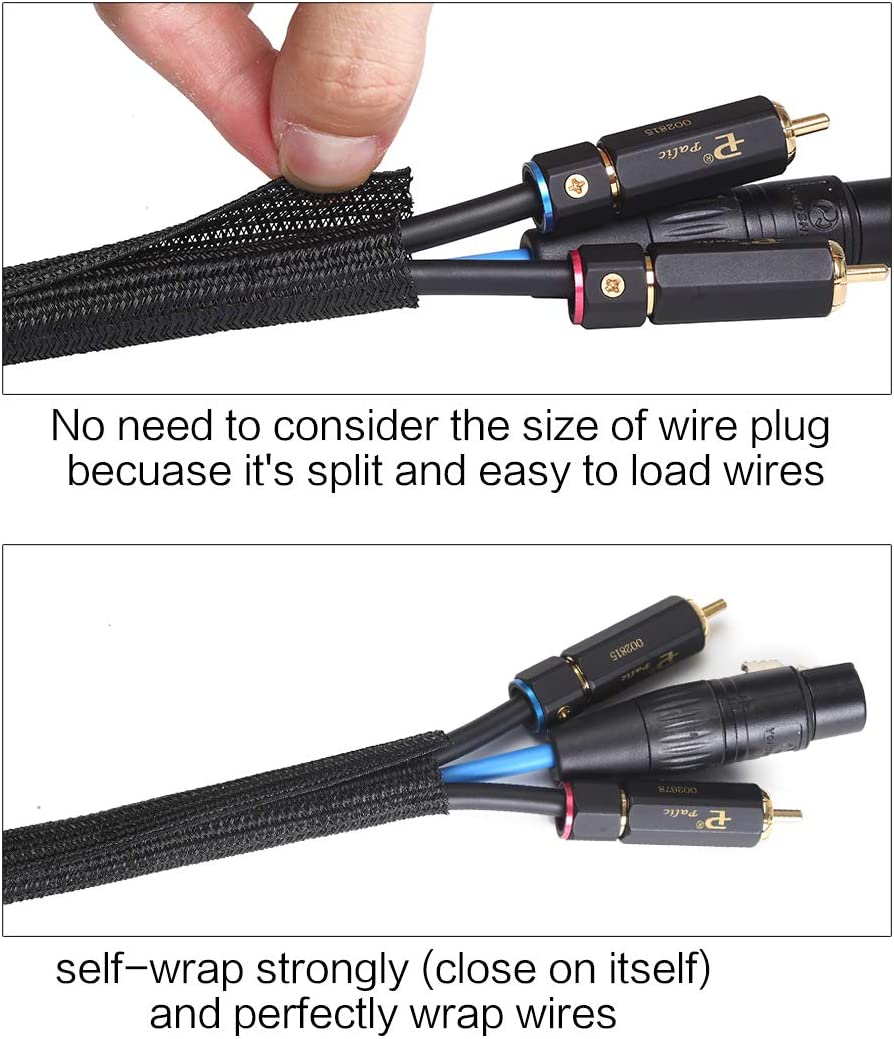

HW-A self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.
Application:
It’s ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.
Technical data:
Material: Polyester
Operating range:-50°C~ +150°C
Melt point: 240± 10°C
Flammability: UL94 V-2
Certificate: RoHS, Halogen free
Standard color: Black
Cutting tool: Hot knife/ scissor
Data sheet:
| Part No. | I.D. (d) |
Overlap (%) |
Max. Bundle Dia. | Packing (L) |
| SWS-006 | 6.0 mm | 25 | 7.0 mm | 100m |
| SWS-009 | 9.0 mm | 10.0 mm | 100m | |
| SWS-013 | 13.0 mm | 14.0 mm | 50m | |
| SWS-016 | 16.0 mm | 17.0mm | 25m | |
| SWS-019 | 19.0 mm | 20.0 mm | 25m | |
| SWS-025 | 25.0 mm | 26.0 mm | 25m | |
| SWS-032 | 32.0 mm | 33.0 mm | 25m | |
| SWS-038 | 38.0 mm | 40.0 mm | 25m | |
| SWS-050 | 50.0 mm | 52.0 mm | 25m |
