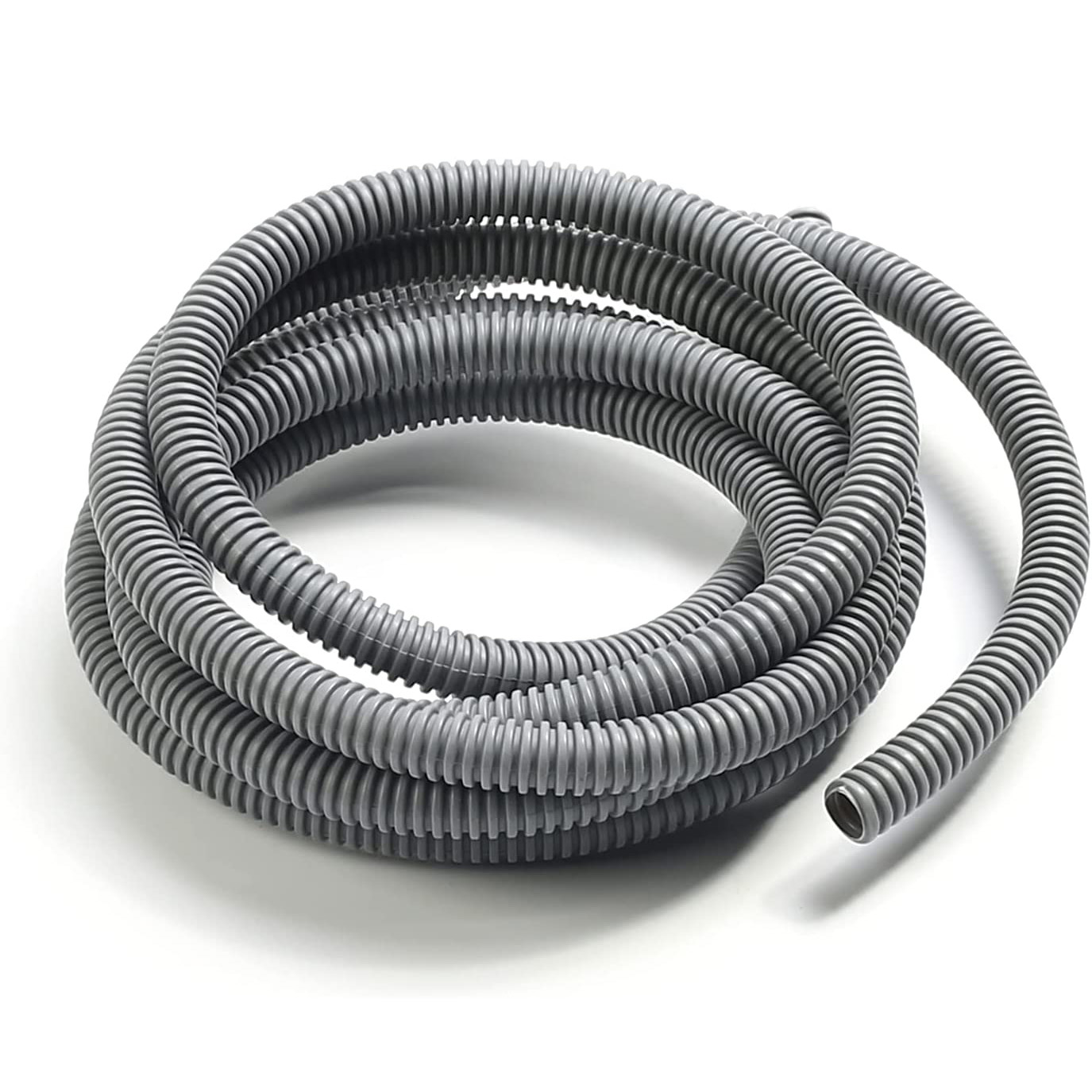

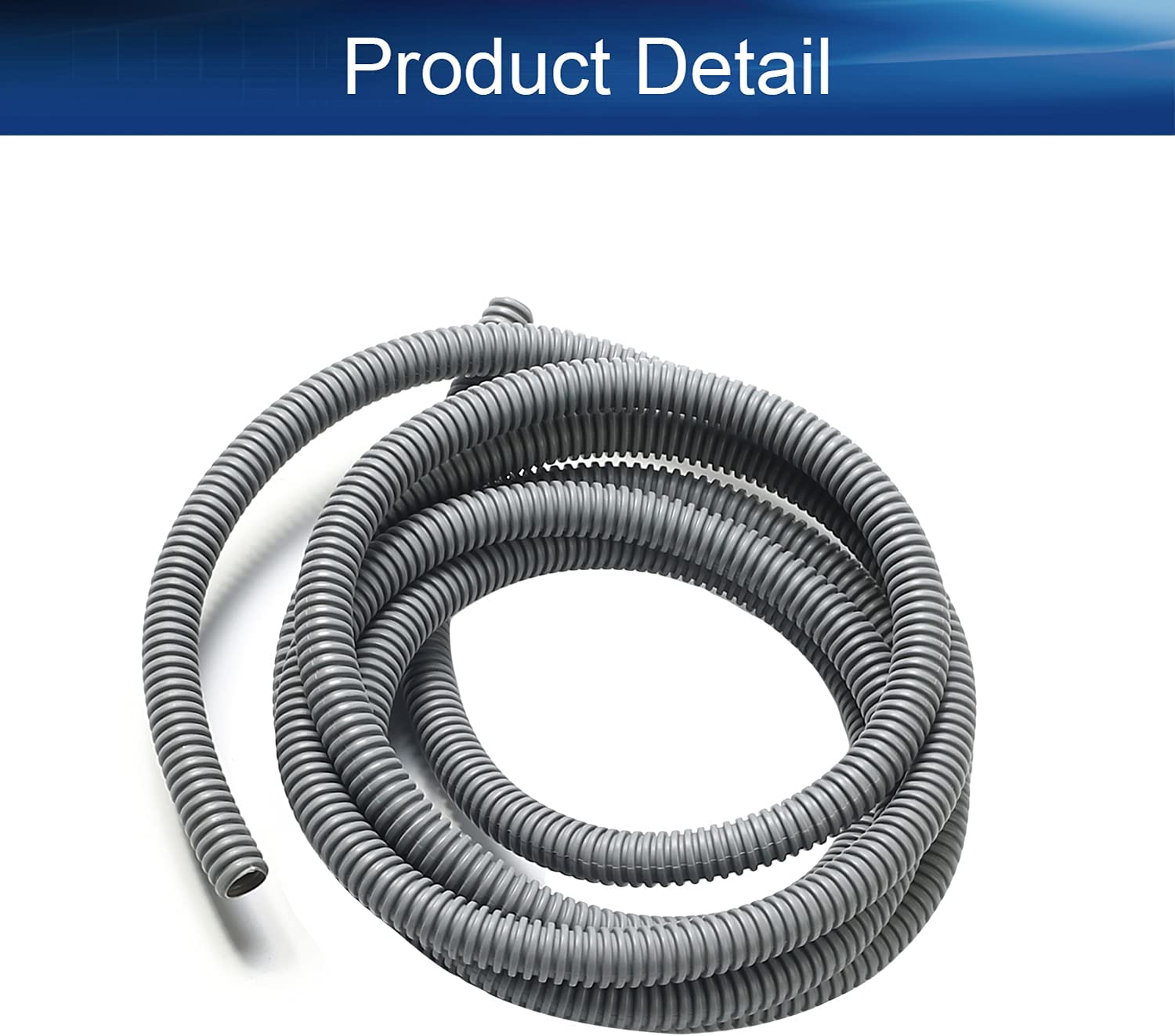

PP Corrugated Tube

Product material:

PP

Working temperature:

– 40 ℃~ 150, the short time to 180 degrees.

Routine product color:

Black. Other color can be customized, minimum quantity of 500 meters

Product certification:

REACH ROHS. HB (UL94), does not contain halogen, phosphorus and cadmium

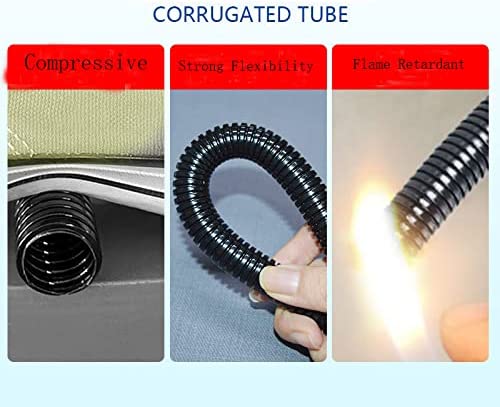

Fire rating:

PA UL94V – 2. can be customized (UL94) V0

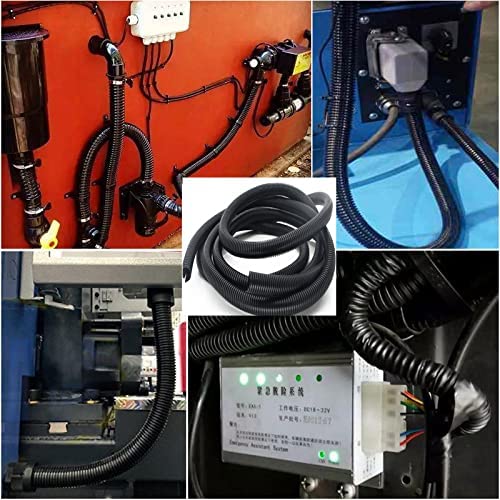

Usage:

Insert the cable tube, such as with ZT hose connection corresponding model can be used.

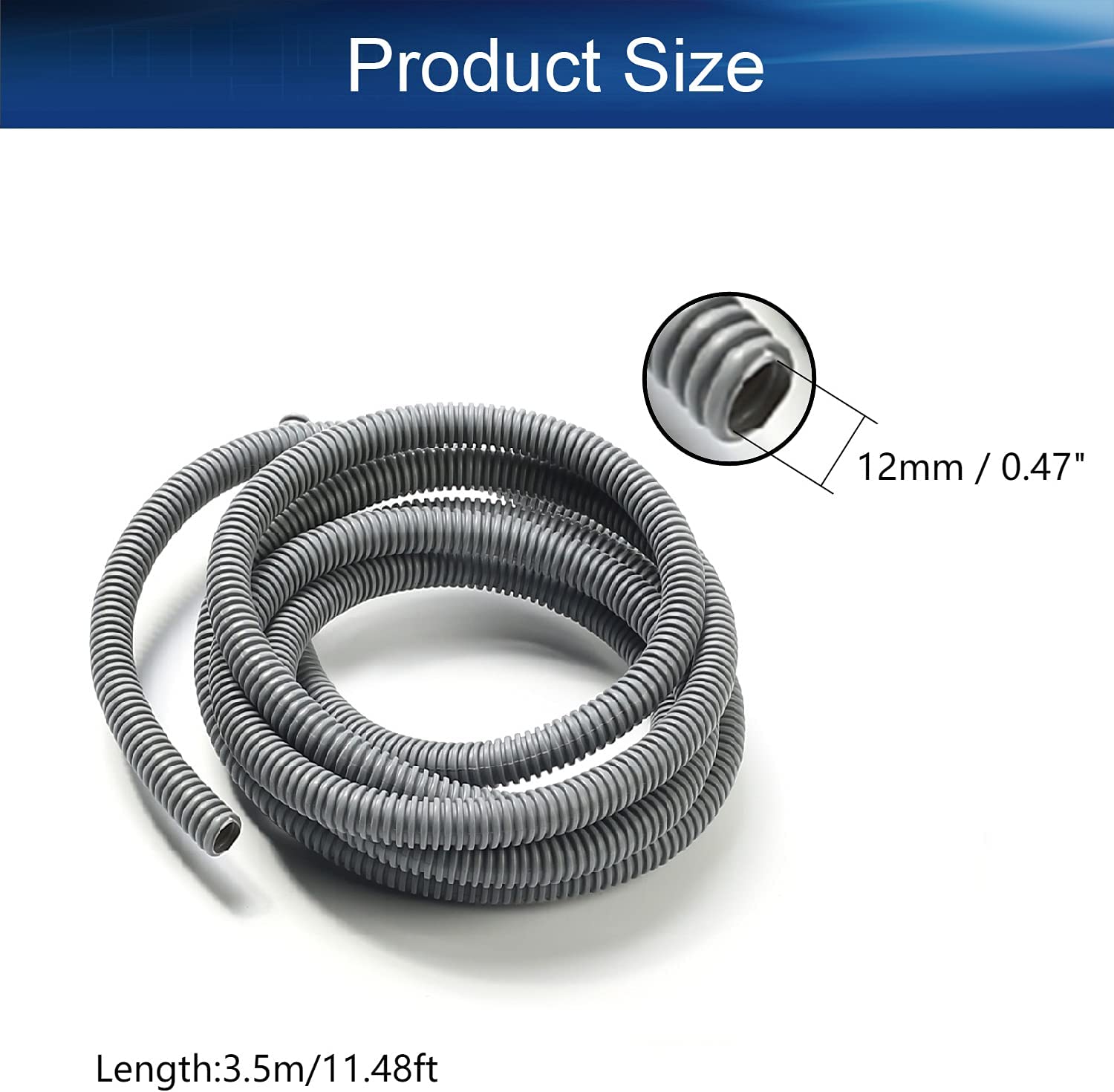

Model-Material

Specifications

Inner diameter
I.D.A（mm）

Outer diameter
O.D.B（mm）

Bending radius
R（mm）

Packaging
Pcs

PP

PP-V0

PP-AD10.0

PA-AD10.0-V0

1/4"

6.5

10

16

100

PP-AD13.0

PA-AD13.0-V0

5/16"

10

13

20

100

PP-AD15.8

PA-AD15.8-V0

3/8"

12

15.8

30

100

PP-AD15.8

PA-AD15.8-V0

14.3

18.5

40

100

PP-AD21.2

PA-AD21.2-V0

1/2"

17

21.2

45

100

PP-AD25.0

PA-AD25.0-V0

20

25

45

50

PP-AD28.5

PA-AD28.5-V0

3/4"

23

28.5

50

50

PP-AD34.5

PA-AD34.5-V0

1"

29

34.5

60

50

PP-AD42.5

PA-AD42.5-V0

1 1/4"

36

42.5

70

50

PP-AD54.5

PA-AD54.5-V0

2"

48

54.5

90

25

PP-AD74.0

PA-AD74.0-V0

2 1/2"

63

74

130

10

PP-AD88.0

PA-AD88.0-V0

3"

76

88

170

10

PP-AD108

PA-AD108-V0

4"

94

108

225

10
